Presets

 jump to: G L N S T

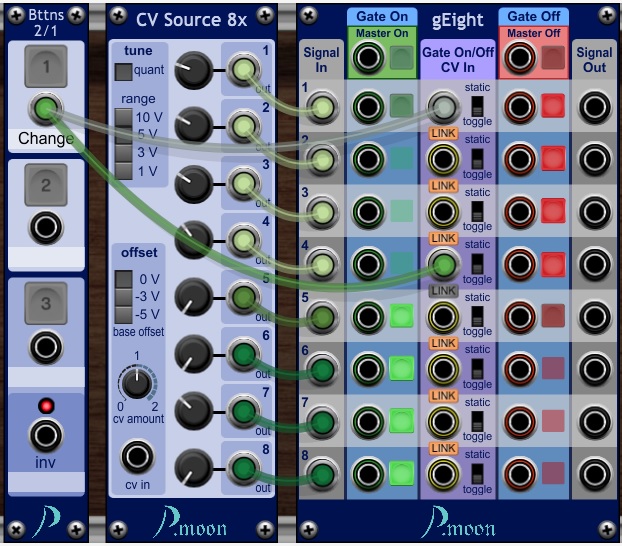

PM gEight example 1

PM gEights example 1
category: utility
doc file: PDF
preset file: *.voltagepreset
Two linked four gate groups in toggle mode. Each pulse at Gate on/off CV will toggle gates on or off.

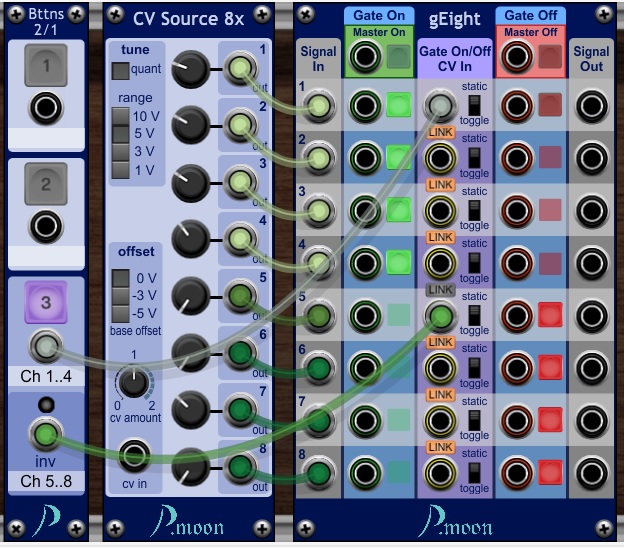

PM gEight example 2

PM gEights example 1
category: utility
doc file: PDF
preset file: *.voltagepreset
Two linked four gate groups in static mode. Gates on/of states are depending on Gate on/off CV value.

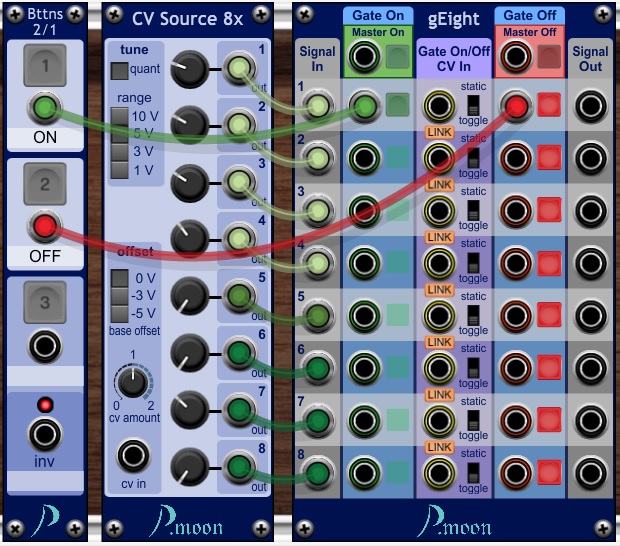

PM gEight example 3

PM gEights example 1
category: utility
doc file: PDF
preset file: *.voltagepreset
All gates are linked to one group in toggle mode. Gates are controlled by separate Gate on and Gate off pulses.

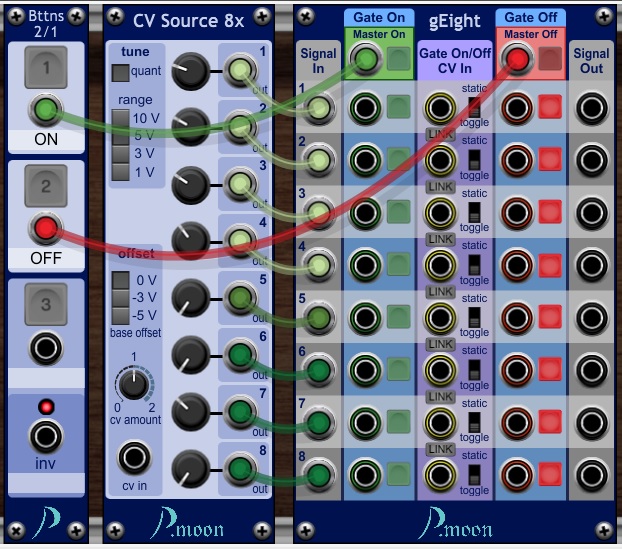

PM gEight example 4

PM gEights example 1
category: utility
doc file: PDF
preset file: *.voltagepreset
All eight gates are unlinked in toggle mode. Gates are controlled by Master on and Master off pulses.

PM LFSR example 1a

PM LFSR - Example 1a (1, 1)
category: generative
doc file: PDF
preset file: *.voltagepreset
LFSR basic preset. Cycle length 64 clock pulses.

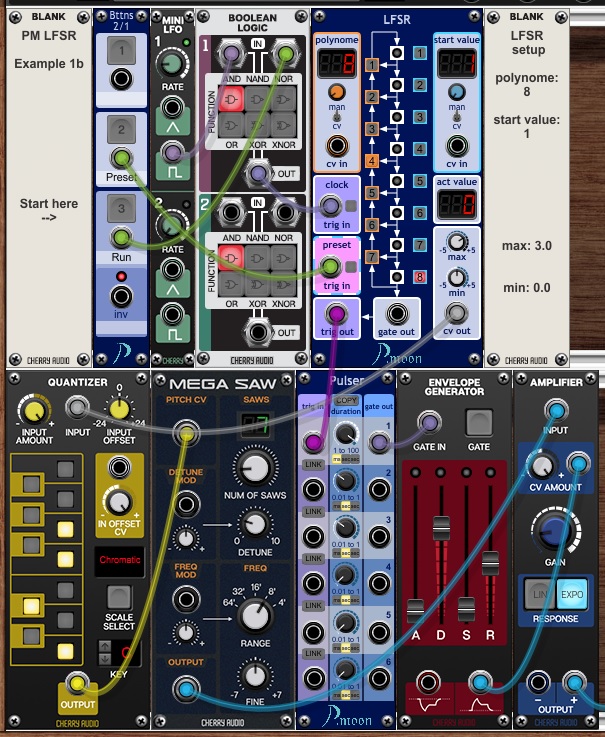

PM LFSR example 1b

PM LFSR - Example 1b (8, 1)
category: generative
doc file: PDF
preset file: *.voltagepreset
LFSR basic preset. Cycle length 12 clock pulses.

PM LFSR example 1c

PM LFSR - Example 1c (16, 1)
category: generative
doc file: PDF
preset file: *.voltagepreset
LFSR basic preset. Cycle length >64 clock pulses.

PM LFSR example 1d

PM LFSR - Example 1d (12, 85)
category: generative
doc file: PDF
preset file: *.voltagepreset
LFSR basic preset. Rather random cycle.

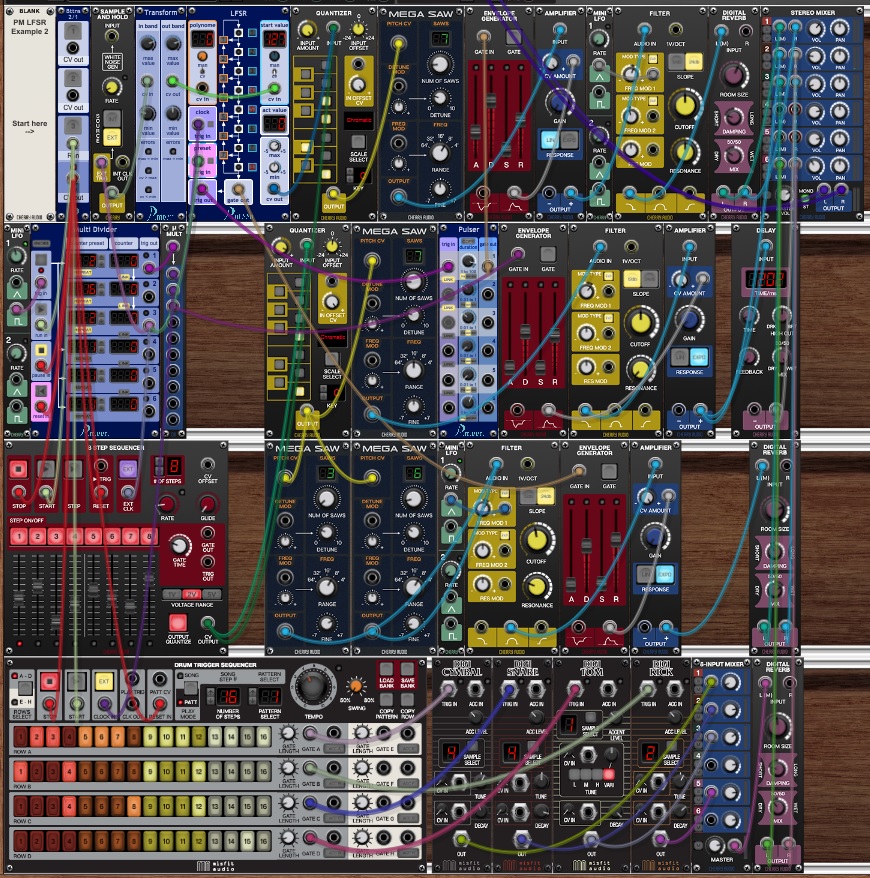

PM LFSR example 2

PM LFSR - Example 2
category: generative
doc file: PDF
preset file: *.voltagepreset
This preset provides generative music. LFSR is not feedbacked and works like a simple eight step sequencer. Only start value is randomized.

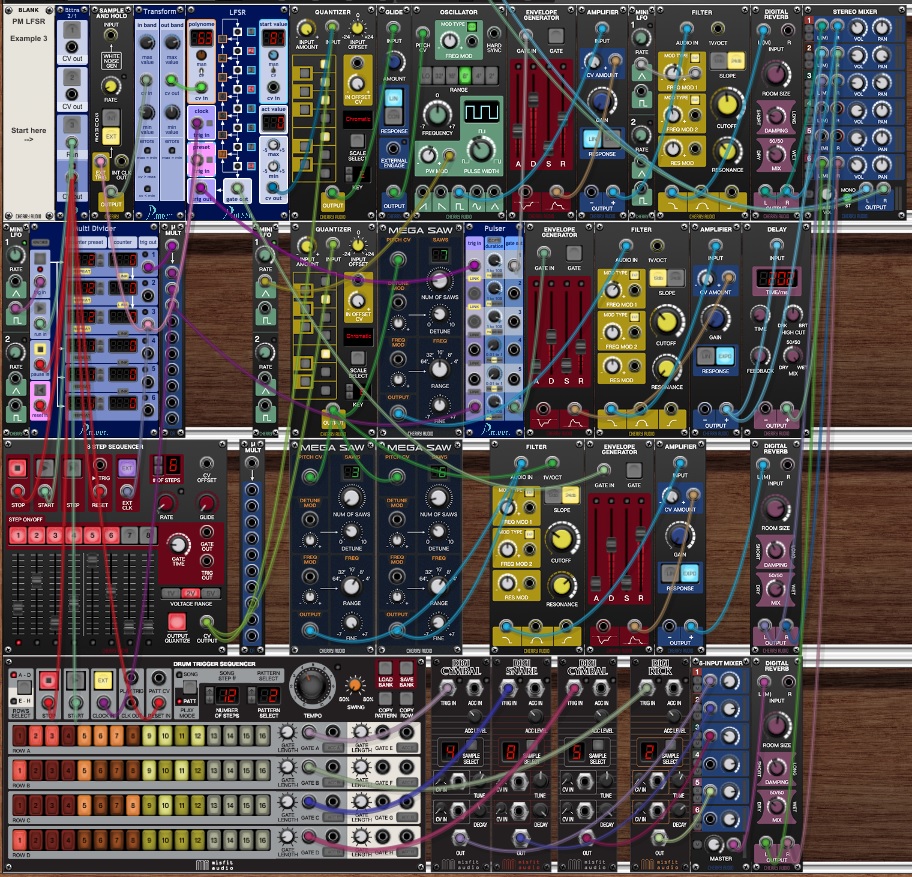

PM LFSR example 3

PM LFSR - Example 3
category: generative
doc file: PDF
preset file: *.voltagepreset
This preset provides generative music. Here LFSR is used in regular manner. Only polynome (feedback) is randomized. Provided melody is rather randomly.

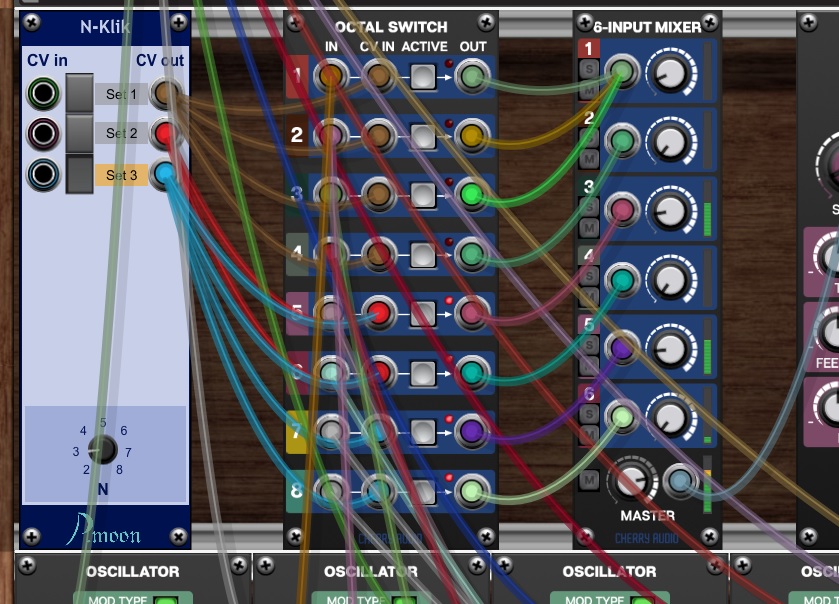

PM N-Klik example 1

PM N-Klik example 1
category: utility
doc file: PDF
preset file: *.voltagepreset
N-Klik controlles CA Octal Switch in order to switch eight to six audio signals.

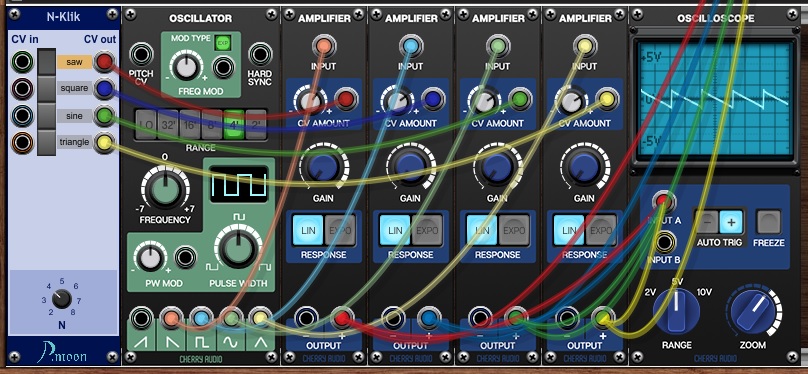

PM N-Klik example 2

PM N-Klik example 2
category: utility
doc file: PDF
preset file: *.voltagepreset
N-Klik used to chose one of four wave forms by means of CA Amplifier.

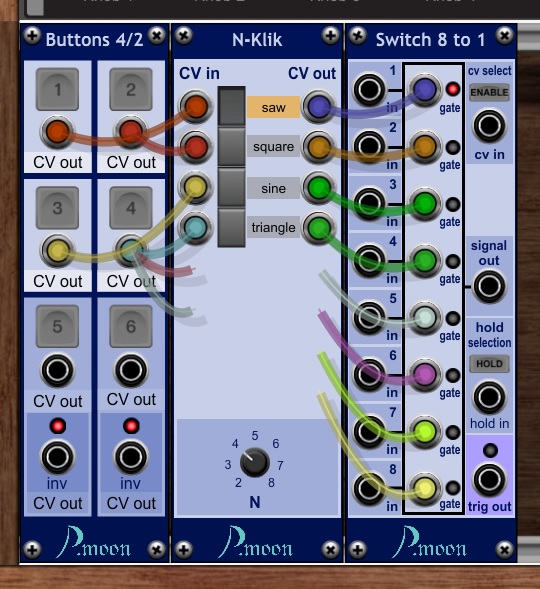

PM N-Klik example 3

PM N-Klik example 3
category: utility
doc file: PDF
preset file: *.voltagepreset
Example for N-Klik behavior, when more than N channels are connected with cables.

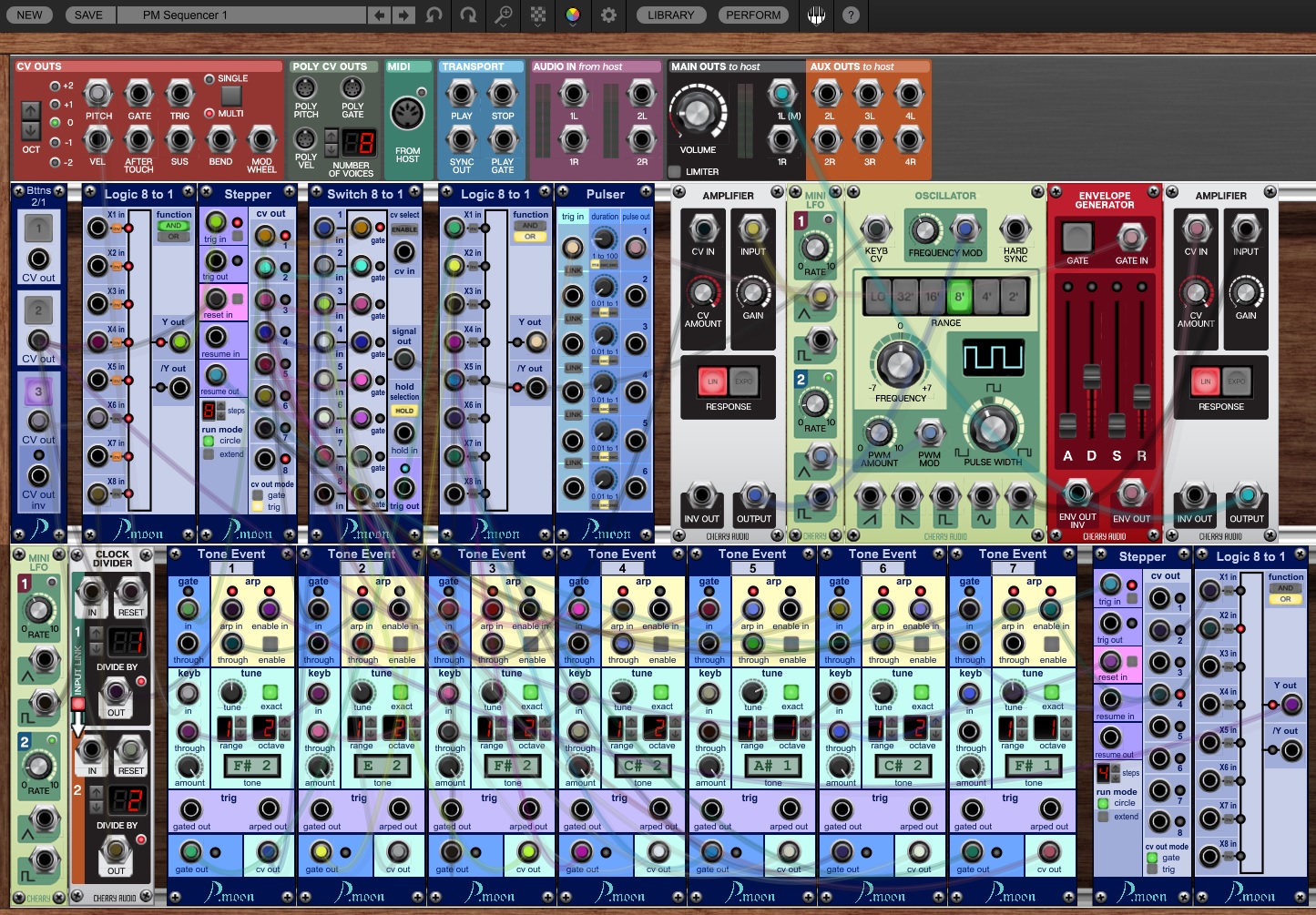

PM Sequencer 1

Sequencer 1
category: sequencer, generative
doc file: PDF
preset file: *.voltagepreset
Classical style sequencer, controlled by Stepper, separate Tone Event for each step, additional Stepper for ratcheting control.

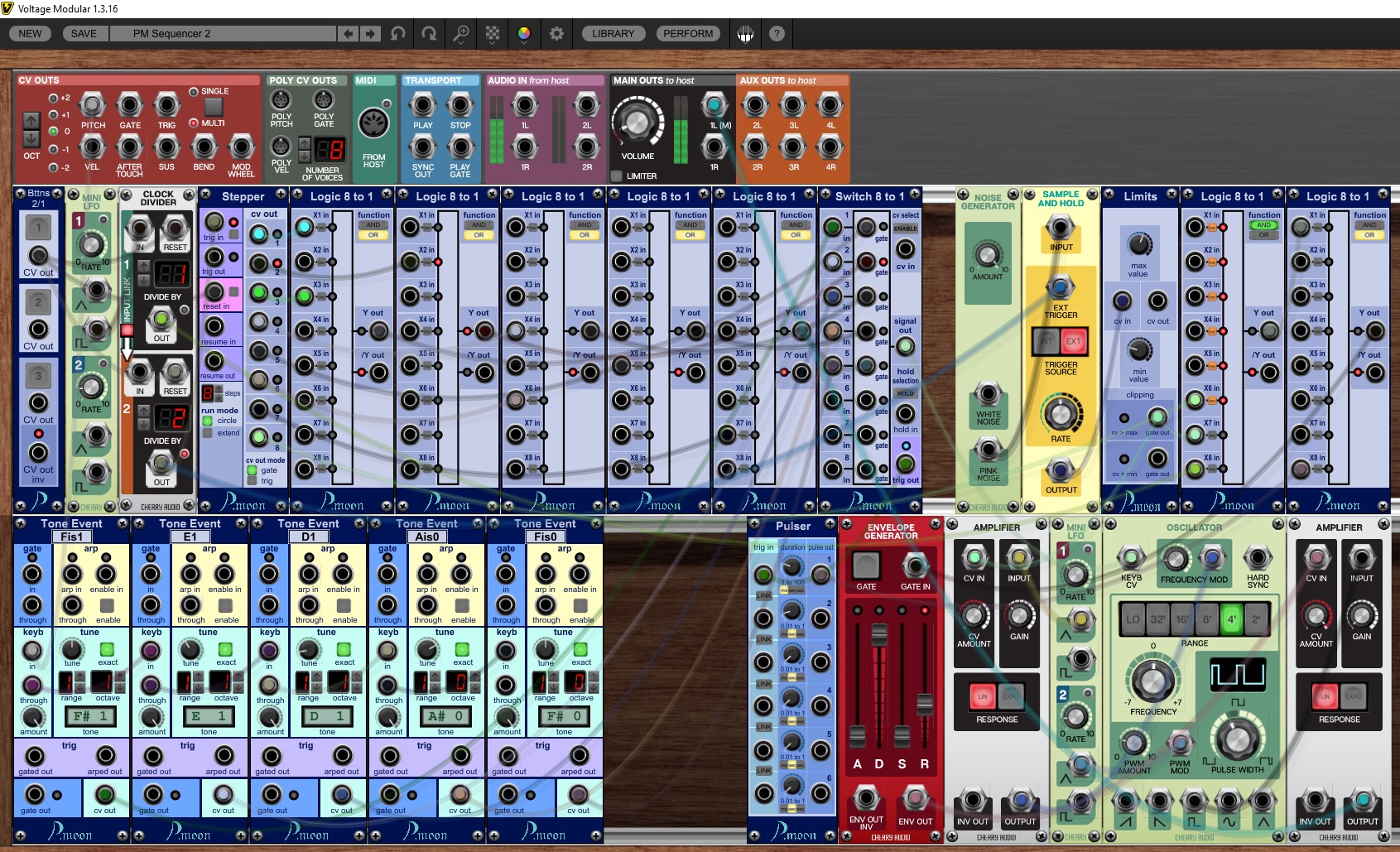

PM Sequencer 2

Sequencer 2
category: sequencer, generative
doc file: PDF
preset file: *.voltagepreset
Sequencer, controlled by Stepper, separate Tone Event for each tone.

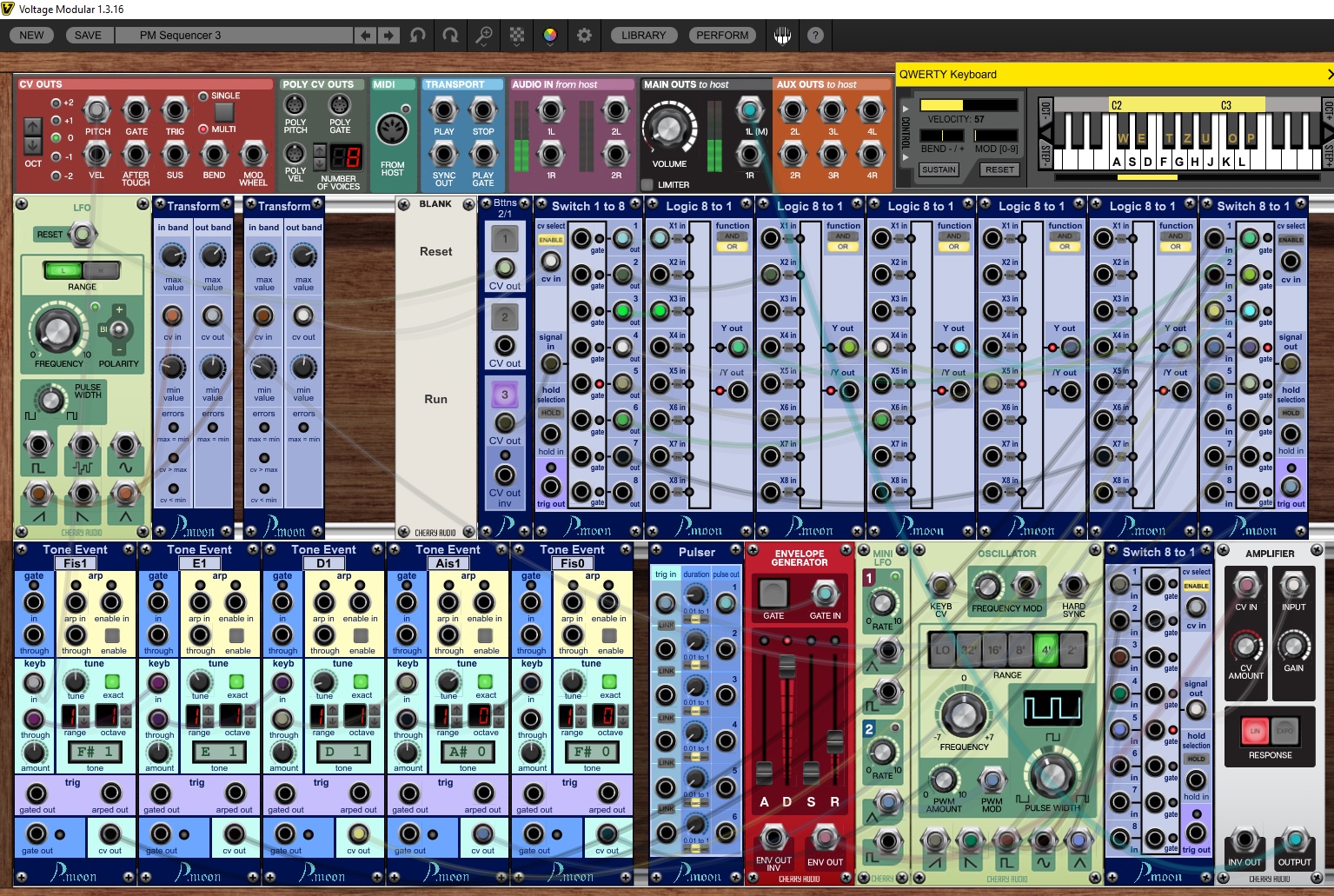

PM Sequencer 3

Sequencer 3
category: sequencer, generative
doc file: PDF
preset file: *.voltagepreset
Sequencer, controlled by a LFO, separate Tone Event for each tone.

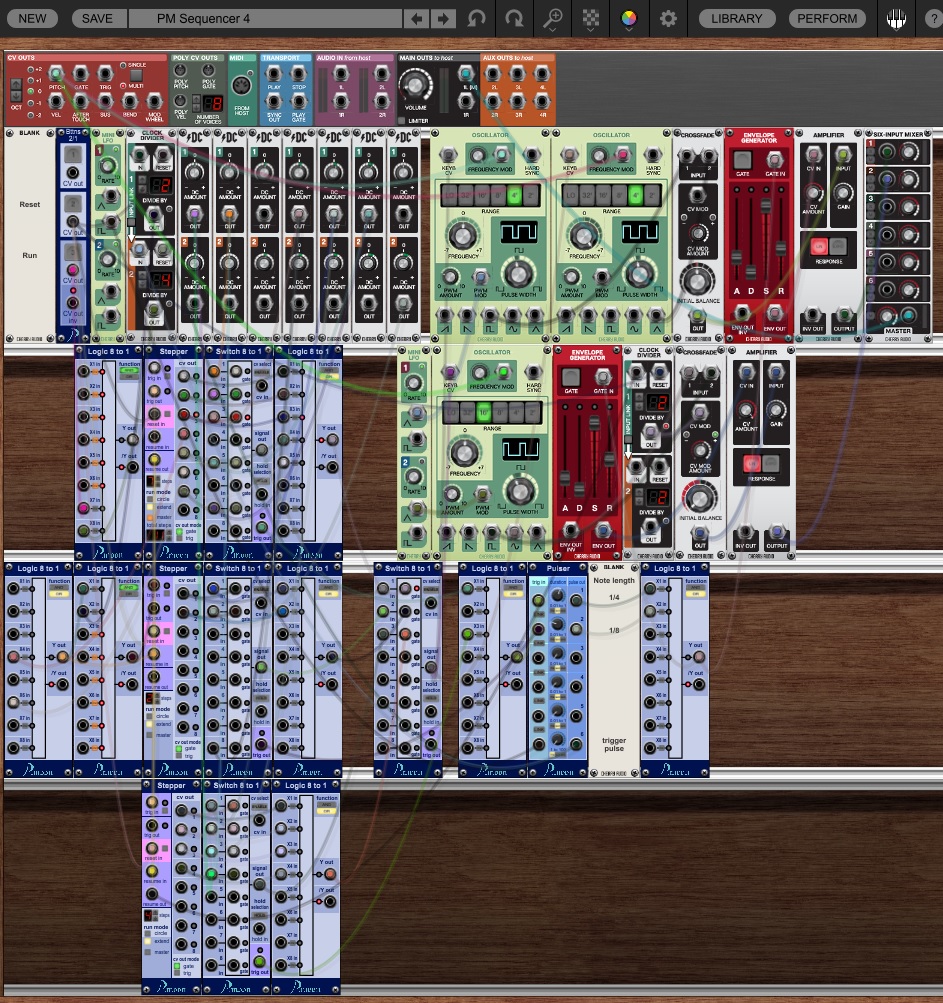

PM Sequencer 4

Sequencer 4
category: sequencer, generative
doc file: PDF
preset file: *.voltagepreset
Complex sequencer, controlled by cascaded and special controlled Stepper modules, DC Sources for each tone.

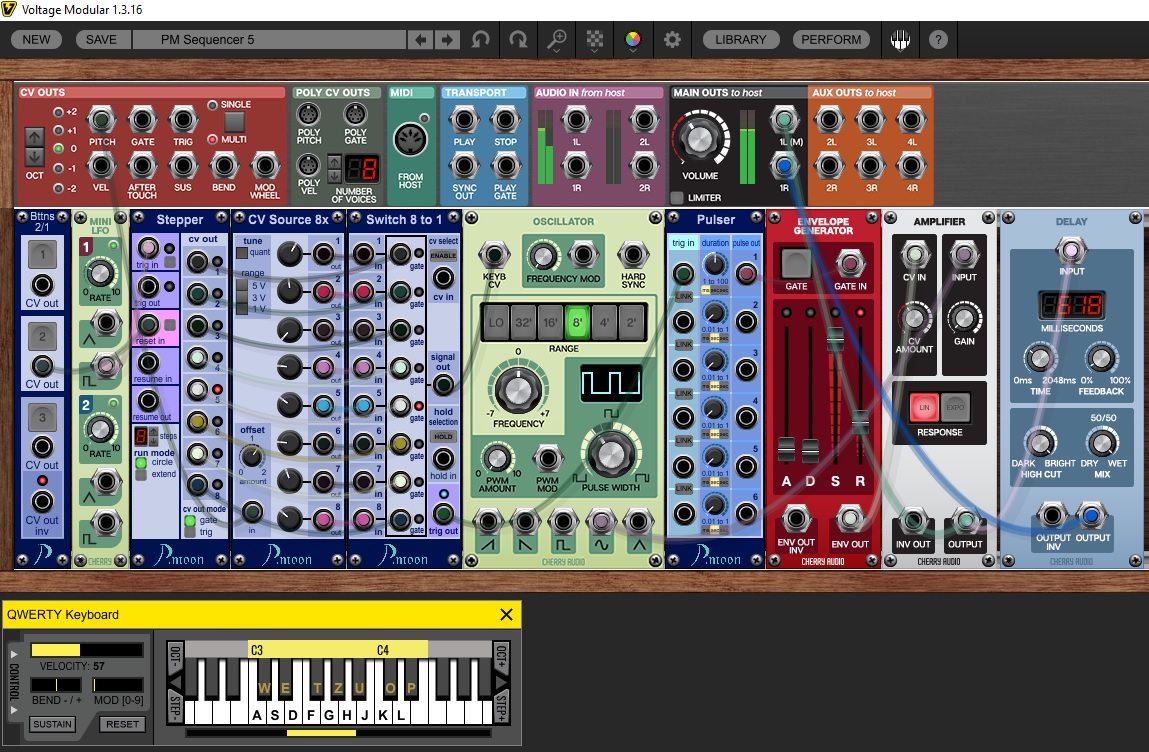

PM Sequencer 5

Sequencer 5
category: sequencer, generative
doc file: PDF
preset file: *.voltagepreset
Simple sequencer, CV Source 8x for tones.

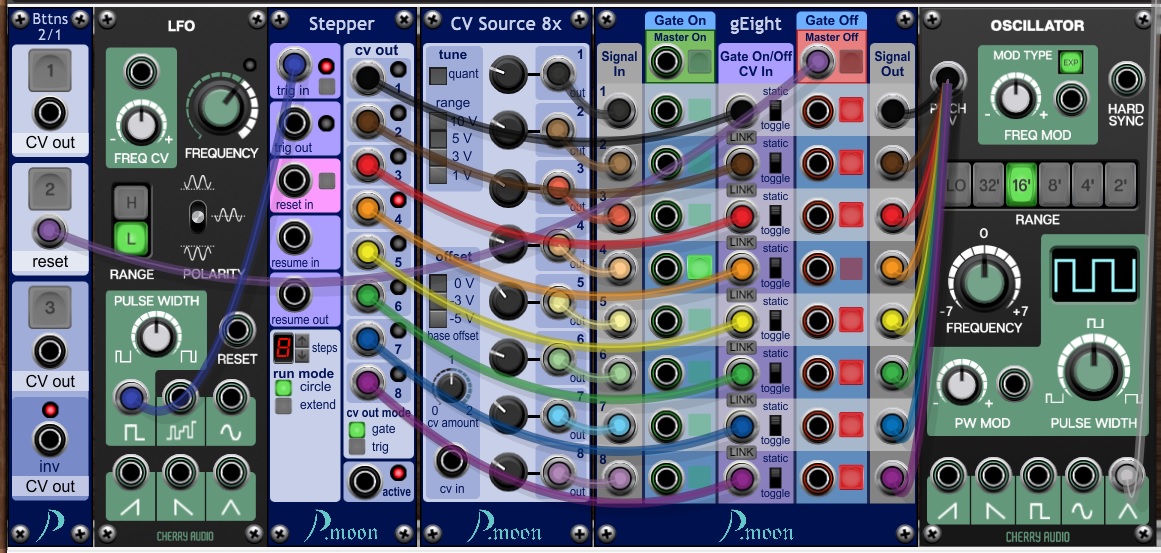

PM Sequencer 6

Sequencer 6
category: sequencer, generative
doc file: PDF
preset file: *.voltagepreset
Simple sequencer, CV Source 8x delivers pitch voltages. gEight module is used to switch on each pitch voltage according to sequencer step.

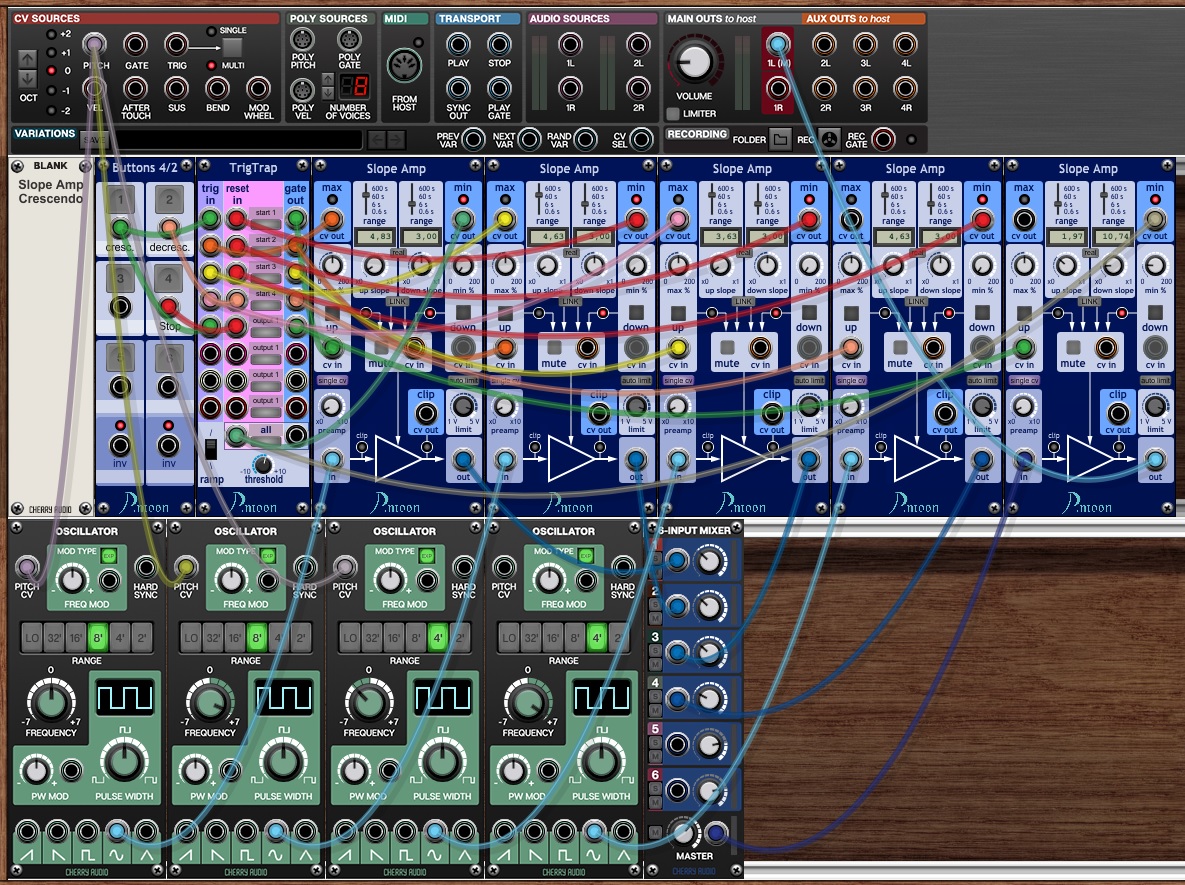

PM Slope Amp - crescendo

PM Slope Amp - crescendo
category: utility, generative
doc file: PDF
preset file: *.voltagepreset
With Slope Amp a crescendo, decrescendo or fade out is realized.

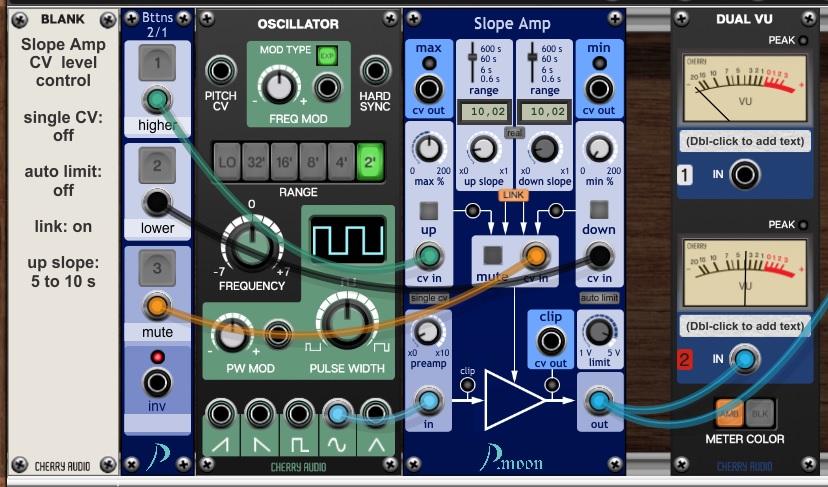

PM Slope Amp - CV level control

PM Slope Amp - CV level control
category: utility
doc file: PDF
preset file: *.voltagepreset
Slope Amp as electronic potentiometer.

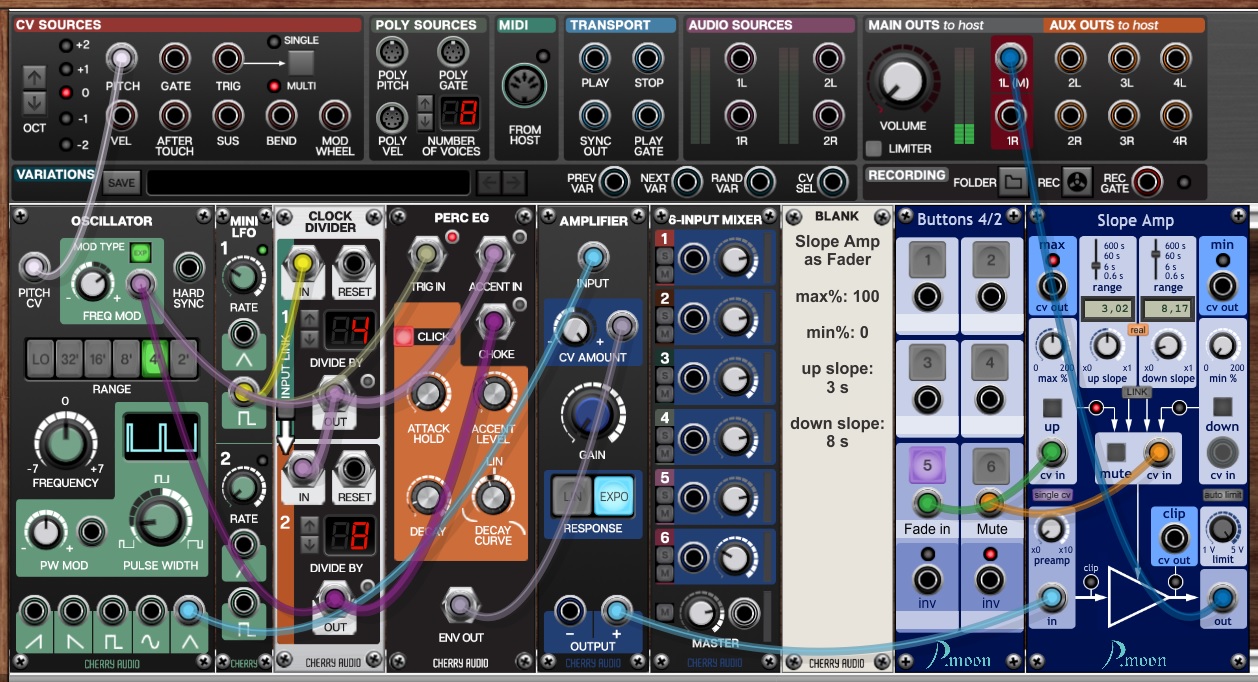

PM Slope Amp - fader

PM Slope Amp - fader
category: utility
doc file: PDF
preset file: *.voltagepreset
Fade in / fade out with CV..

PM Slope Amp - follower

PM Slope Amp - follower
category: utility, generative
doc file: PDF
preset file: *.voltagepreset
Slope Amp controlles timing for a song arrangement.

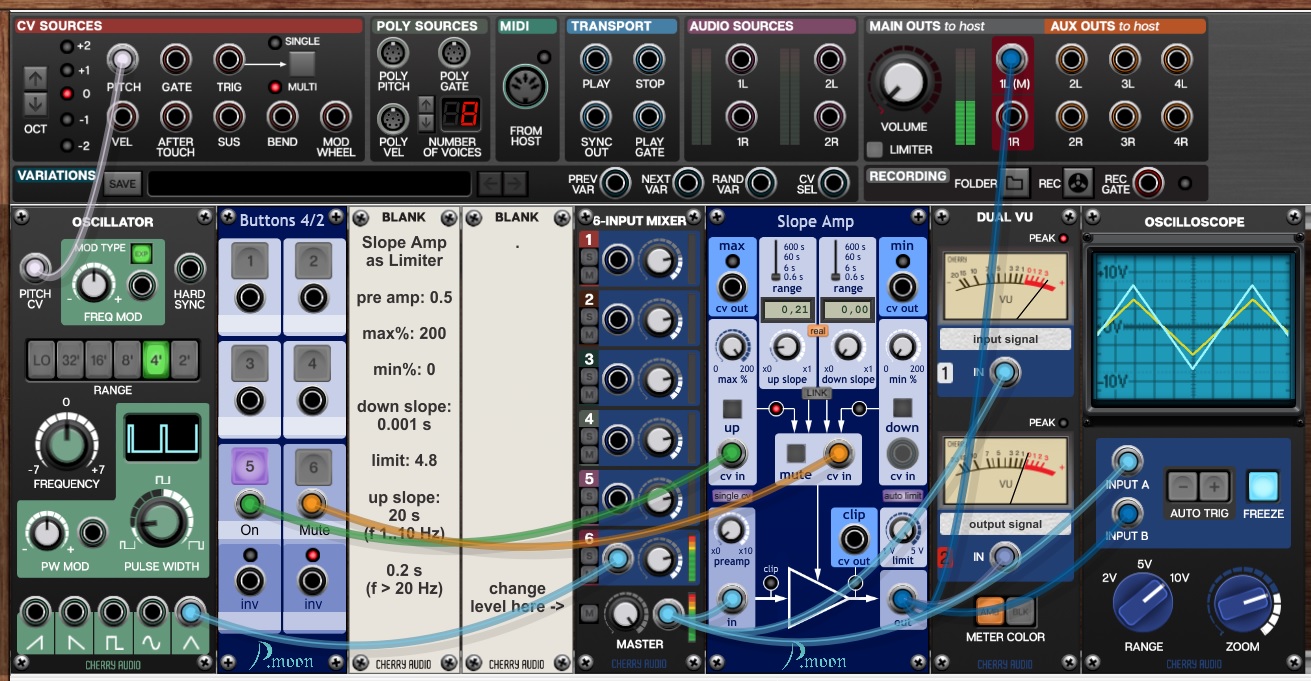

PM Slope Amp - limiter

PM Slope Amp - limiter
category: utility, generative
doc file: PDF
preset file: *.voltagepreset
Slope Amp serves as audio limiter.

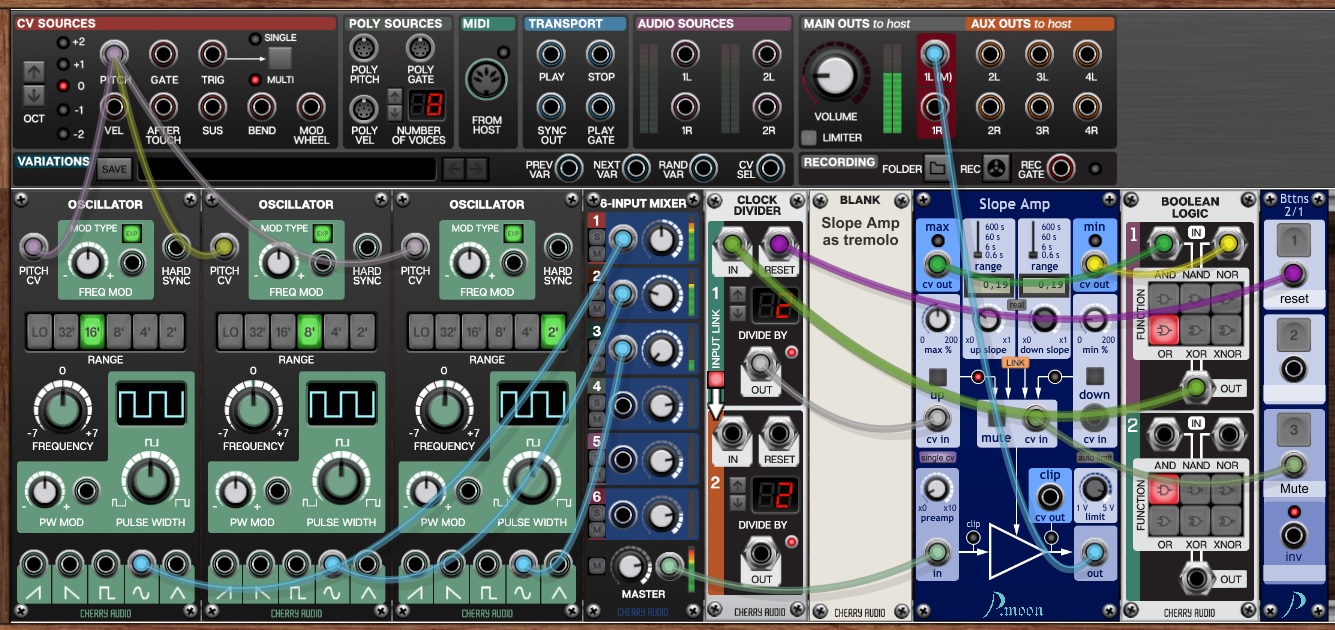

PM Slope Amp - tremolo

PM Slope Amp - tremolo
category: effect
doc file: PDF
preset file: *.voltagepreset
Level modulation (tremolo) with Slope Amp.

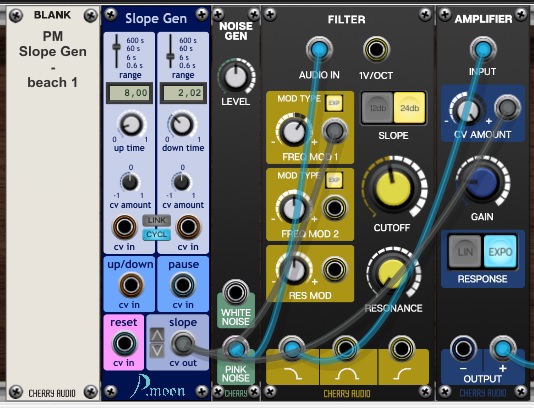

PM Slope Gen - beach 1

PM Slope Gen - beach 1
category: instrument
preset file: *.voltagepreset
Simple Sea noise simulation..

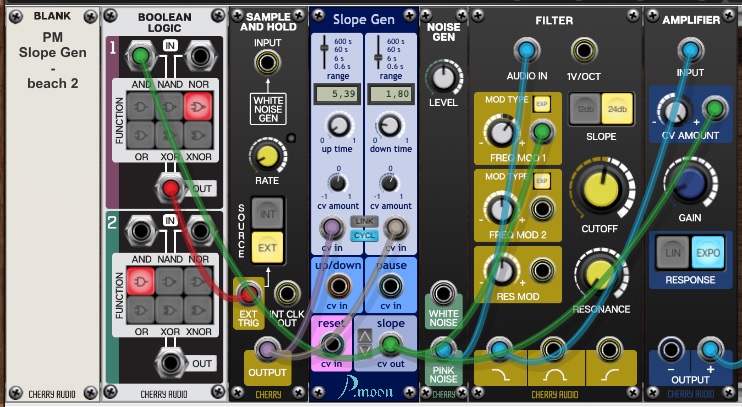

PM Slope Gen - beach 2

PM Slope Gen - beach 2
category: instrument
preset file: *.voltagepreset
Advanced Sea noise simulation..

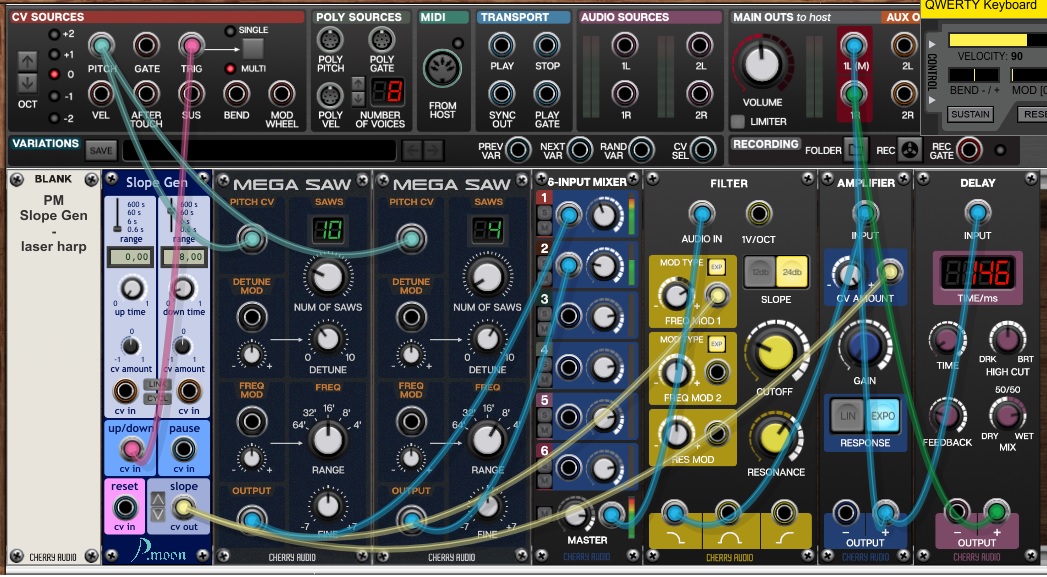

PM Slope Gen - laser harp

PM Slope Gen - laser harp
category: instrument
preset file: *.voltagepreset
Emulation of famous JMJ laser harp..

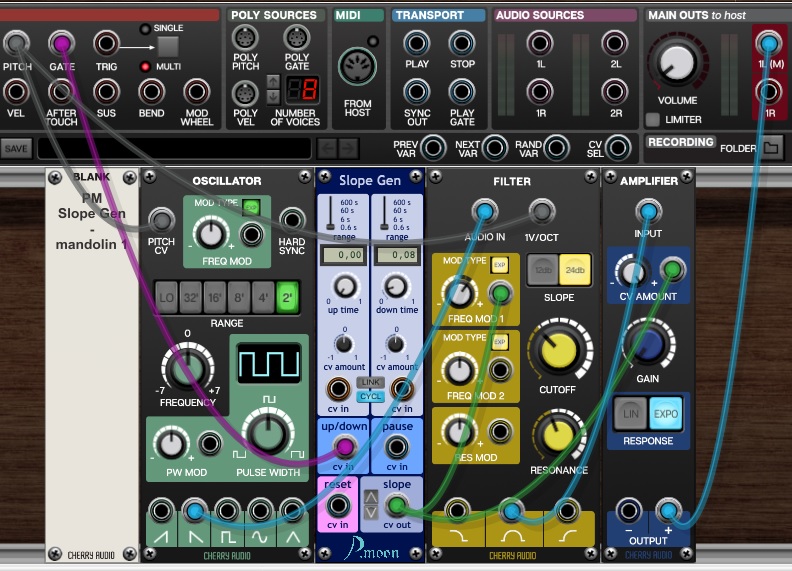

PM Slope Gen - mandolin 1

PM Slope Gen - mandolin 1
category: instrument
preset file: *.voltagepreset
Simple mandolin sound..

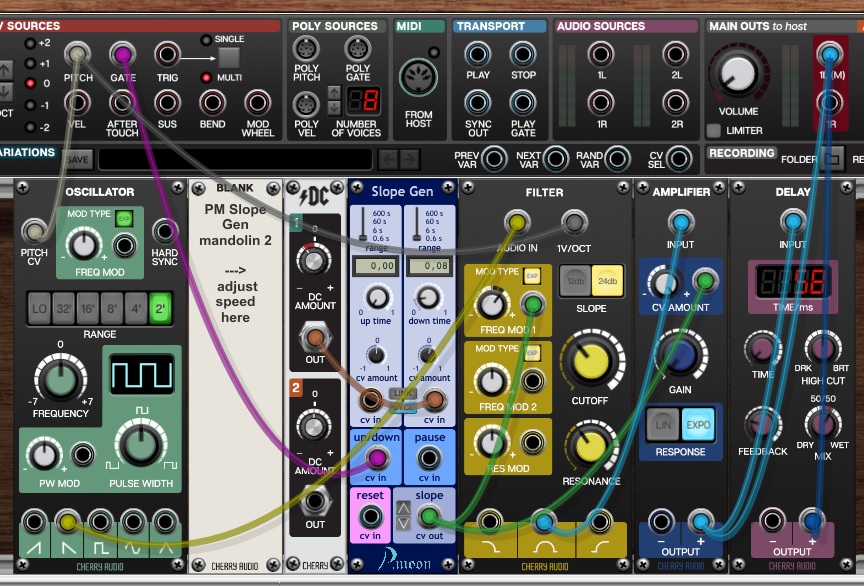

PM Slope Gen - mandolin 2

PM Slope Gen - mandolin 2
category: instrument
preset file: *.voltagepreset
Enhanced mandolin sound..

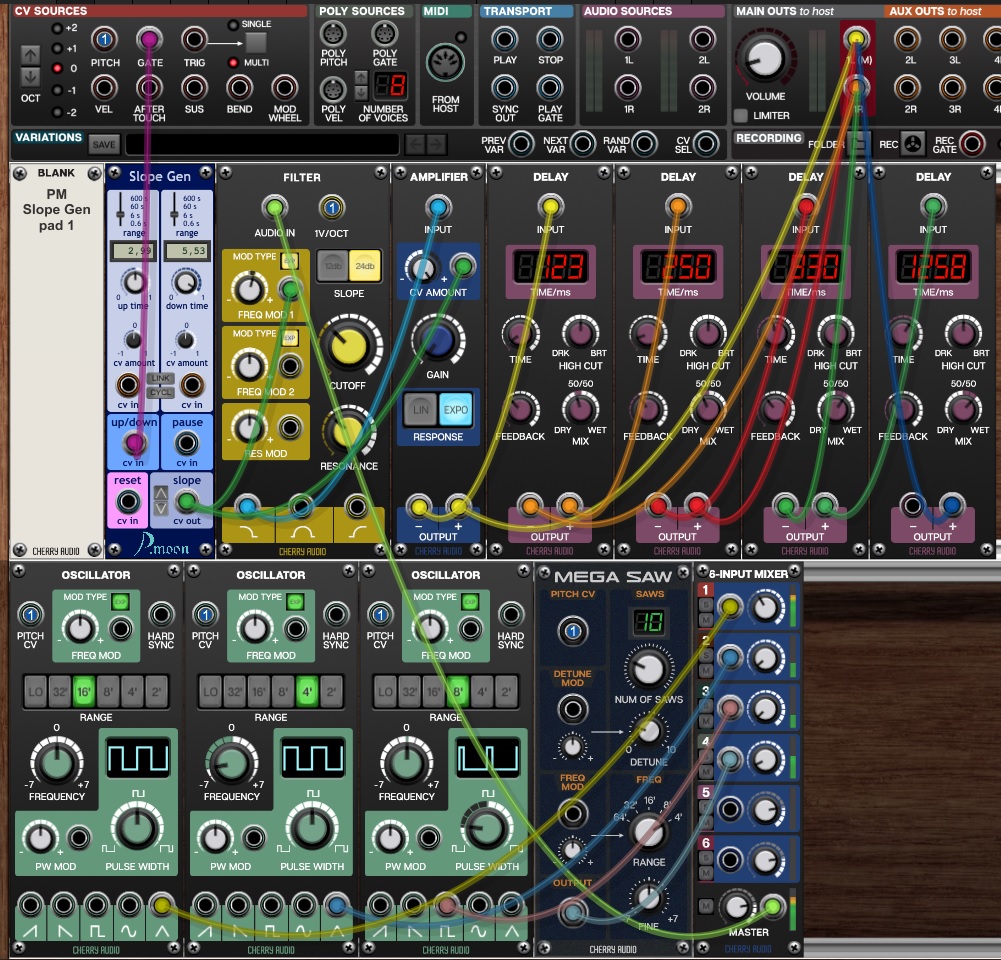

PM Slope Gen - pad 1

PM Slope Gen - pad 1
category: instrument
preset file: *.voltagepreset
Slope Gen as envelope generator for a pad sound.

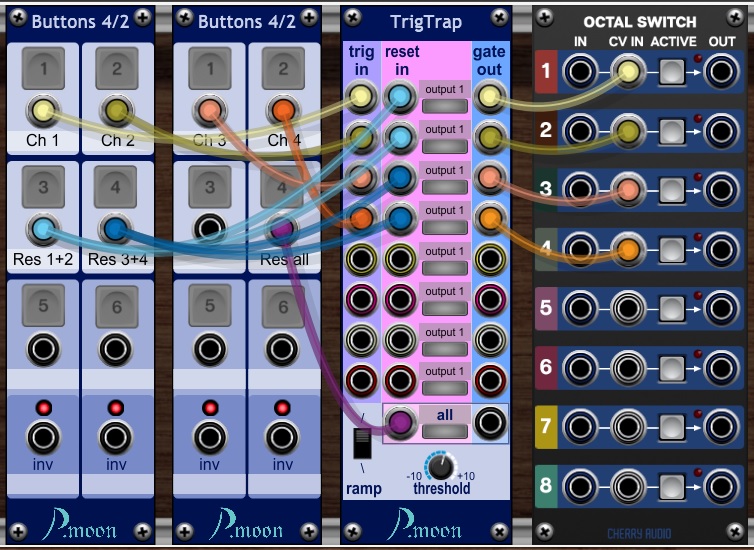

PM TrigTrap example

PM TrigTrap example
category: utility
doc file: PDF
preset file: *.voltagepreset
TrigTrap and CA Octal Switch are used to switch on channels 1 to 4 separately. Channel 1+2 and 3+4 can be switched off as groups. all reset input lets you switch off all channels at once.
